ZJQ Submersible Sand Pump

    ZJQ submersible sand pump is equipment of motor and pump use same shaft submerge together to medium and work.

Inquire Now
Product Description

ZJQ submersible sand pump is equipment of motor and pump use same shaft submerge together to medium and work.Special wear-resistant material is the company for domestic special industrial and mining research and development of high-chromium alloy over-flow components (material chrome chrome 27, chrome 28, chrome 30, etc.),Wear service life can reach more than 10 times the ordinary sand pump.Model by diameter is divided into 40、50、65、80、100、150、200、250、300、350、400.

Product features
Capacity:5~2000m3/h
Head:15~95m,
Max.pass solid:96mm.
1.Power supply for the 50Hz, 380V three-phase AC power supply.
2.The maximum temperature of the medium shall not be higher than 40 ℃, the media does not contain flammable and explosive gas.
3.The maximum weight of solid particles in the media: 45% of the ash, while sand, slag, pulp is 60%.
4.Unit maximum diving depth is generally not more than 20 meters, after a special modification up to 60 meters, the minimum diving depth of not less than 1 meter.

5.Unit in the medium to work as vertical is well, running for continuous operation.

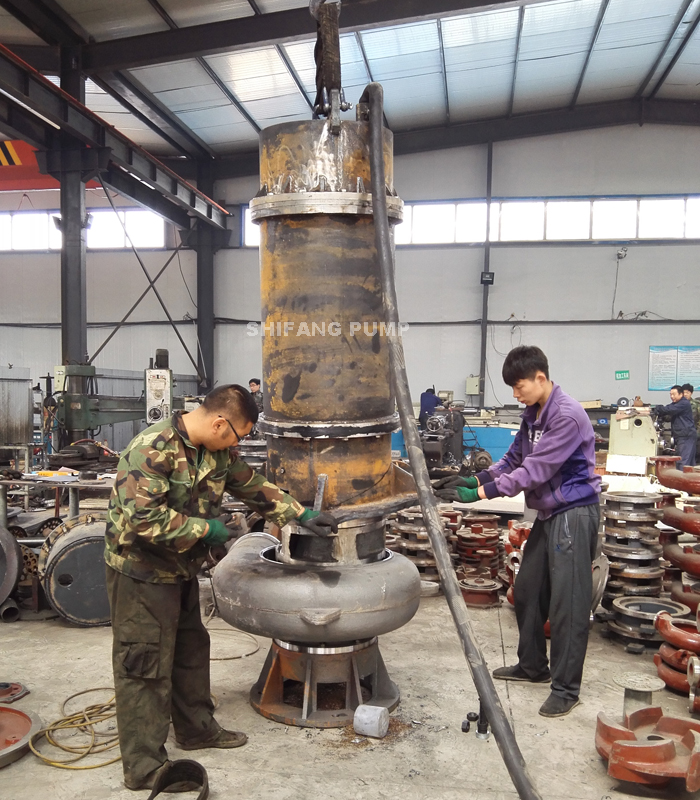

Workshop

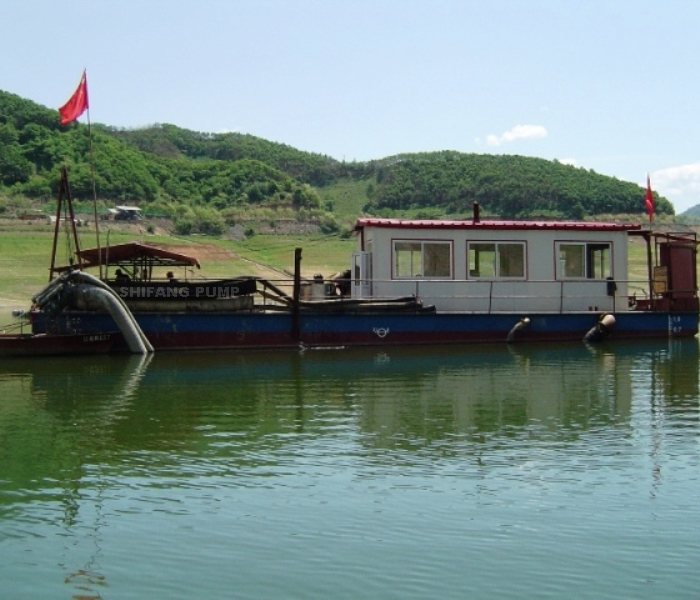

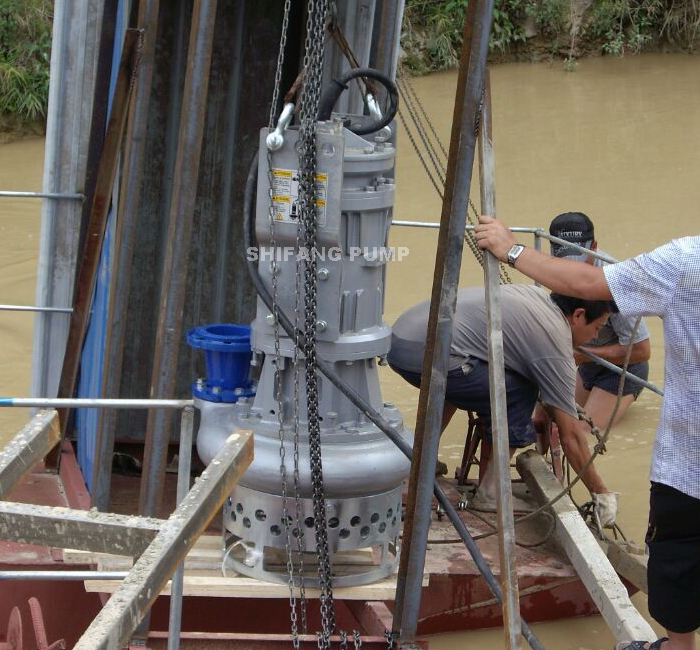

Application sites




Submersible sand pump usage:
Including but not limited to the following:
1、River, small river, lake, sea, reservoir pumping sand.
2、River, lake, reservoir, port dredging sediment.
3、Pumping sand beneficiation: pumping sand election iron, pumping sand gold, sand selection rare solid.
4、Sewage treatment plant sedimentation tank cleaning.
5、Municipal pipelines, rainwater pumping stations, hydropower station sediment cleaning.
6、Construction (bridge construction wells, etc.) row of sediment, mud.
7、Steel plant blast furnace slag, slag, pumping iron oxide delivery.
8、Concentrator tailings, slag, pulp transport.
9、Coal cinder, slime, coal slurry cleaning.
10、Power plant fly ash, slime, coal slurry transportation.
11、Learn a variety of King Kong sand, quartz sand, steel slag solid particles.
12、Tile factory pumping powder.
13、Coastal areas.
14、Delivery slurry material which containing various impurities .
15、Transport other medium containing larger solid particles.


ZJQ Performance Parameter

No.

Model

Outlet   diam.  mm

Capacity m3/h

Head

Power

Speed r/min

Max.pass   solid mm

 Weight

m

kW

 kg

1

ZJQ10-10-3

40

10

10

3

1460

8

65

2

ZJQ15-8-3

50

15

8

3

1460

10

65

3

ZJQ10-20-4

40

15

22

4

1460

10

85

4

ZJQ20-12-4

50

20

18

4

1460

10

85

5

ZJQ15-15-4

50

15

15

4

1460

10

85

6

ZJQ30-10-4

65

30

10

4

1460

10

85

7

ZJQ20-30-5.5

50

20

30

5.5

1460

13

110

8

ZJQ30-20-5.5

65

30

20

5.5

1460

13

112

9

ZJQ45-15-5.5

80

45

15

5.5

1460

13

115

10

ZJQ50-10-5.5

80

50

10

5.5

1460

13

120

11

ZJQ30-30-7.5

65

30

30

7.5

1460

13

135

12

ZJQ45-20-7.5

80

32

20

7.5

1460

13

138

13

ZJQ50-16-7.5

80

45

15

7.5

1460

13

135

14

ZJQ80-10-7.5

100

100

10

7.5

1460

21

135

15

ZJQ40-25-11

80

40

25

11

1480

13

240

16

ZJQ50-26-11

80

50

26

11

1480

13

240

17

ZJQ70-20-11

100

70

20

11

1480

13

240

18

ZJQ100-16-11

100

100

18

11

1480

21

240

19

ZJQ35-35-15

80

25

40

15

1480

13

260

20

ZJQ50-30-15

80

50

26

15

1480

13

260

21

ZJQ70-25-15

100

70

24

15

1480

13

260

22

ZJQ100-20-15

100

100

18

15

1480

21

270

23

ZJQ120-15-15

100

150

15

15

1480

21

270

24

ZJQ150-15-18.5

150

150

18

18.5

1480

32

550

25

ZJQ180-12-18.5

150

200

12

18.5

1480

45

550

26

ZJQ150-22-22

150

150

22

22

1480

32

600

27

ZJQ250-15-22

150

200

15

22

1480

45

600

28

ZJQ60-46-30

100

60

46

30

1480

14

550

29

ZJQ70-38-30

100

70

38

30

1480

21

710

30

ZJQ100-35-30

100

100

35

30

1480

21

710

31

ZJQ120-30-30

150

120

30

30

1480

21

710

32

ZJQ200-25-30

150

200

20

30

1480

21

710

33

ZJQ250-20-30

200

300

15

30

1480

28

700

34

ZJQ100-40-37

100

100

40

37

1480

21

850

35

ZJQ250-22-37

200

250

22

37

1480

28

775

36

ZJQ150-35-45

150

150

35

45

1480

36

1000

37

ZJQ200-30-45

150

200

30

45

1480

36

1110

38

ZJQ150-45-55

150

150

45

55

1480

21

1140

39

ZJQ250-35-55

150

250

35

55

1480

36

1140

40

ZJQ400-20-55

200

600

15

55

980

46

1220

41

ZJQ250-45-75

150

200

45

75

1480

21

1540

42

ZJQ200-50-75

150

200

50

75

1480

14

1550

43

ZJQ300-35-75

200

300

35

75

1480

28

1550

44

ZJQ400-25-75

200

400

25

75

1480

25

1550

45

ZJQ500-20-75

200

500

20

75

980

25

1550

46

ZJQ200-60-90

150

200

60

90

1480

14

1550

47

ZJQ400-40-90

200

400

40

90

1480

28

1550

48

ZJQ500-25-90

200

500

25

90

980

25

1550

49

ZJQ400-50-110

200

400

50

110

1480

28

1970

50

ZJQ600-30-110

200

600

30

110

980

28

1970

51

ZJQ780-26-110

300

780

26

110

980

50

1970

52

ZJQ400-60-132

200

400

60

132

1480

28

2000

53

ZJQ500-45-132

200

500

45

132

980

28

2500

54

ZJQ500-55-132

200

500

55

132

980

28

2500

55

ZJQ800-35-132

300

800

35

132

980

42

2700

56

ZJQ1000-22-132

300

1000

22

132

980

50

3200

57

ZJQ650-52-160

200

650

52

160

980

28

3300

58

ZJQ780-50-185

300

780

50

185

980

38

3500

59

ZJQ800-55-220

300

800

55

220

980

38

3700

60

ZJQ1250-35-220

350

1250

35

220

740

45

4200

61

ZJQ1750-30-250

350

1750

30

250

740

55

4500

62

ZJQ1500-35-250

350

1500

35

250

740

50

4700

63

ZJQ2000-35-315

400

2000

35

315

740

60

5500
