PN -type pump single-stage, single-suction, centrifugal mud pump, the material of pump flow components used wear-resistant alloy .
Model Code：
For example:2PN
2—Outlet diam.（The number of millimeters is 25 divided by the value）
P—Impurity pump
N—Mud pump
The maximum concentration of the delivery is 50-60% by weight.
Structure features：
1、Wet part with wear-resistant and corrosive-resistant cast iron, long service life。
2、Impeller and guard plate gap can be adjusted in time to maintain a high efficiency work.
3、≥4
inch pump,the pump bearing is directly in the horizontal open
bracket，Easy to adjust the demolition inspection in a timely manner, and
in the oil tank with water-cooled snake-like tube to improve the
bearing working conditions.
4、≥8 inch have big pump body,Using a
separate structure of the form, easy dis-assembly and maintenance.

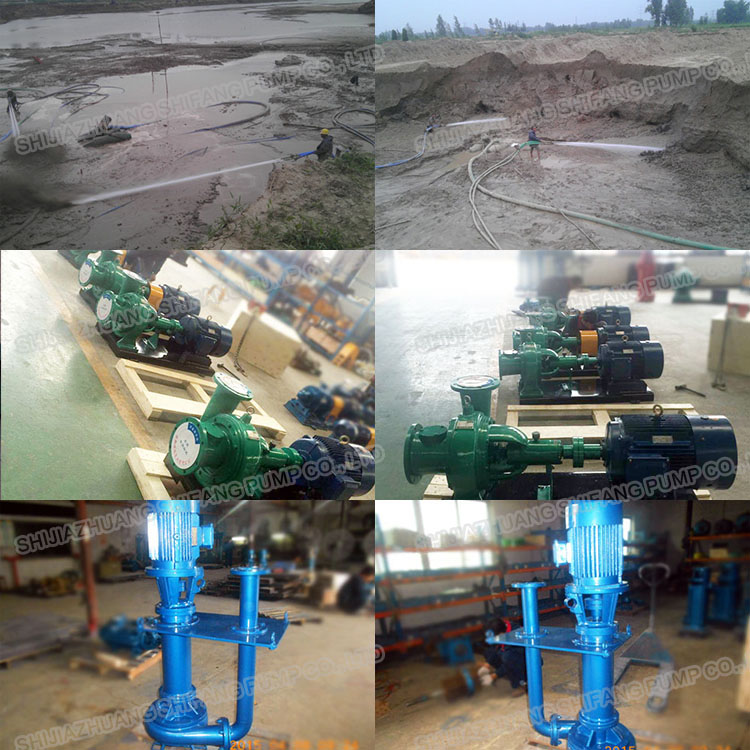

Currently,our factory product PN and PNL mud pump mainly have about ten
types,such as：1PN、2PN、3PN、4PN、6PN、8PN、10PN、12PN,etc.In these
models，
Parameter:
| Model | Flow | Head | Speed | NPSHr | Efficiency | Power | Diameter (mm) | |
| Q(m3/h) | H(m) | n(r/min) | m | η(%) | kw | Inlet | Outlet | |
| 1PN | 7.2 | 14 | 1430 | 0.55 | 21 | 3 | 50 | 25 |
| 12 | 13 | 30 | ||||||
| 16 | 12 | 35 | ||||||
| 2PN | 30 | 22 | 1450 | 1.32 | 33 | 11 | 96 | 50 |
| 47 | 19 | 39 | ||||||
| 58 | 17 | 39 | ||||||
| 3PN | 54 | 26 | 1470 | 2.35 | 32 | 22 | 125 | 75 |
| 108 | 21 | 42 | ||||||
| 151 | 15 | 37 | ||||||
| 4PN | 100 | 41 | 1470 | 2.95 | 46 | 55 | 150 | 100 |
| 150 | 39 | 55 | ||||||
| 200 | 37 | 61 | ||||||
| 4PN(1) | 41.5 | 51 | 1470 | 1.92 | 23 | 55 | 150 | 100 |
| 80 | 50 | 36 | ||||||
| 111 | 49 | 44.5 | ||||||
| 4PN(2) | 52 | 51 | 1470 | 2.2 | 26 | 75 | 150 | 100 |
| 100 | 50 | 37 | ||||||
| 138 | 49 | 47 | ||||||
| 6PN | 230 | 27 | 980 | 2.59 | 56 | 75 | 200 | 150 |
| 280 | 26 | 60 | ||||||
| 320 | 25 | 62 | ||||||
| 8PN | 450 | 65 | 980 | 7.8 | 57 | 215 | 200 | 200 |
| 550 | 63 | 60 | ||||||
| 600 | 62 | 61 | ||||||
| 10PN | 768 | 91.8 | 980 | 6.8 | 63 | 780 | 200 | 250 |
| 1030 | 88 | 44 | ||||||
| 1290 | 85 | 51 | ||||||
